Investment banking firm

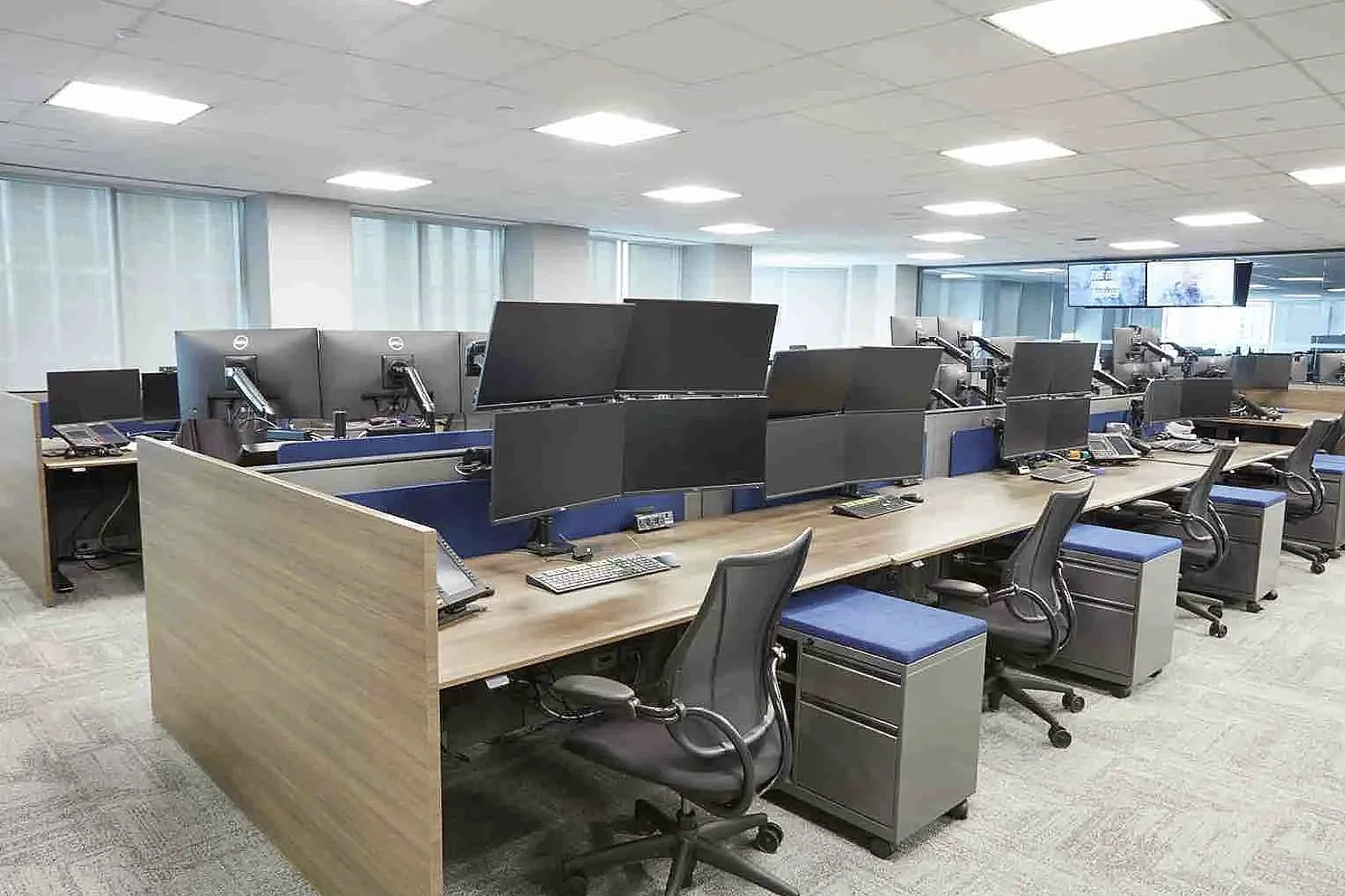

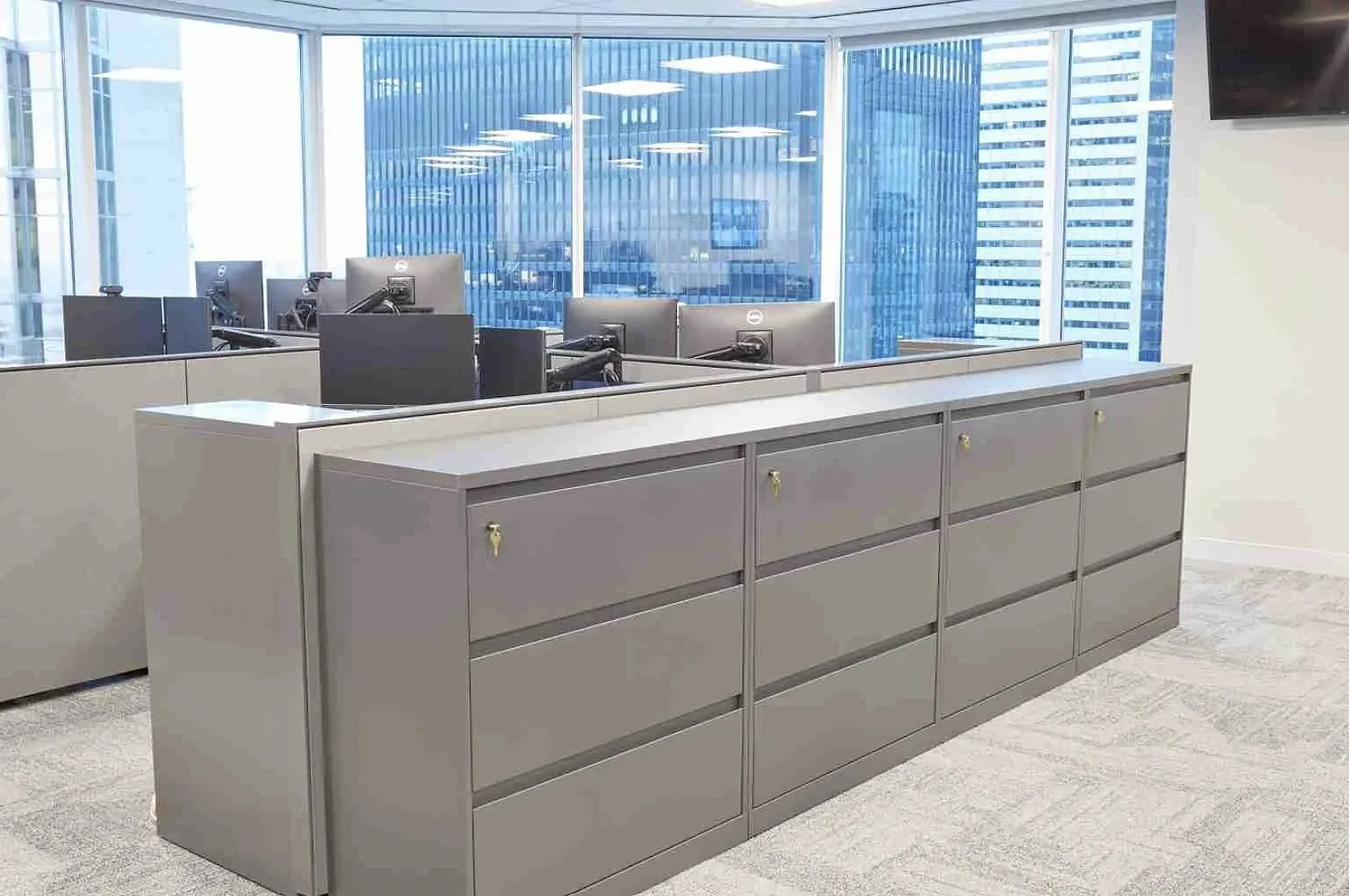

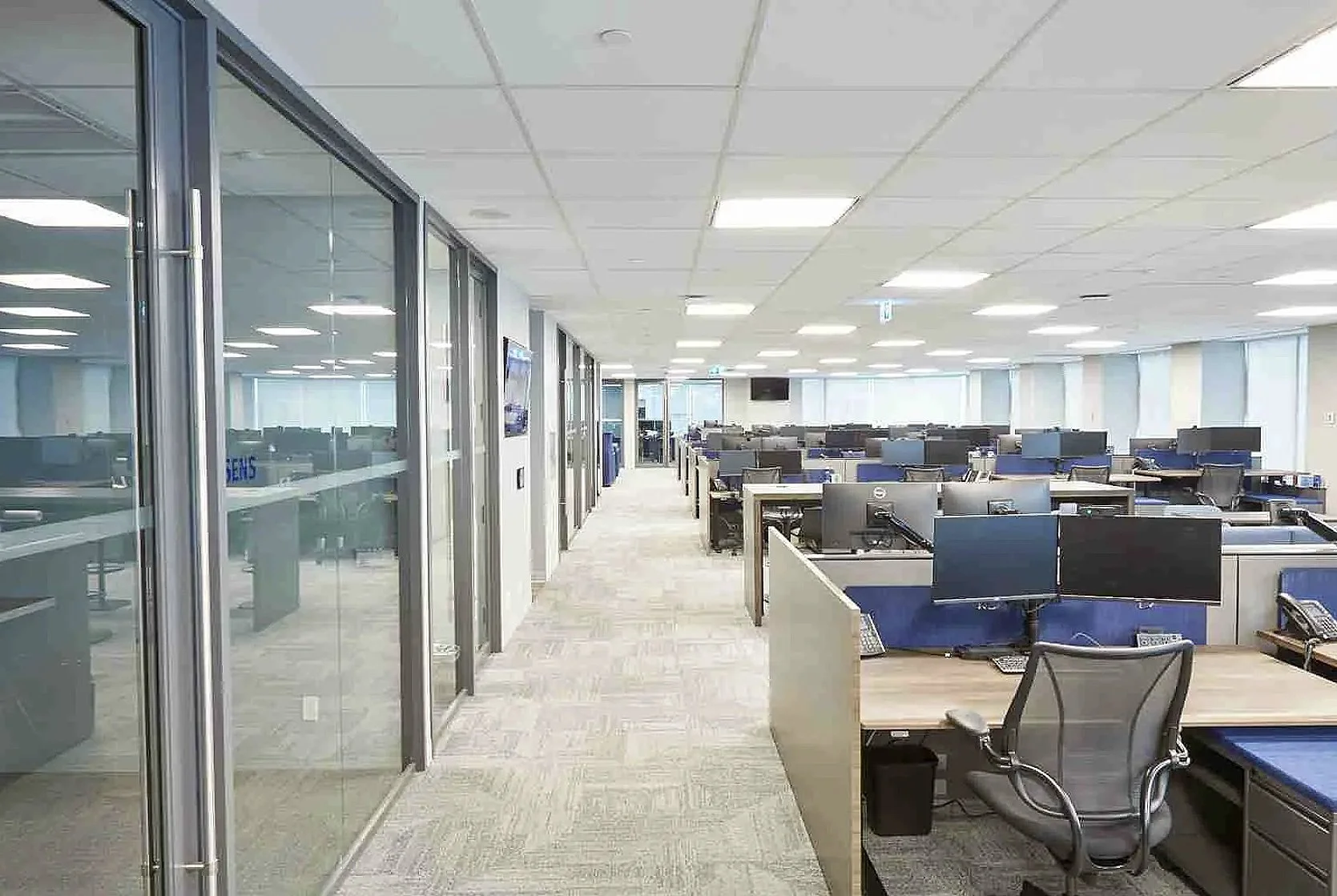

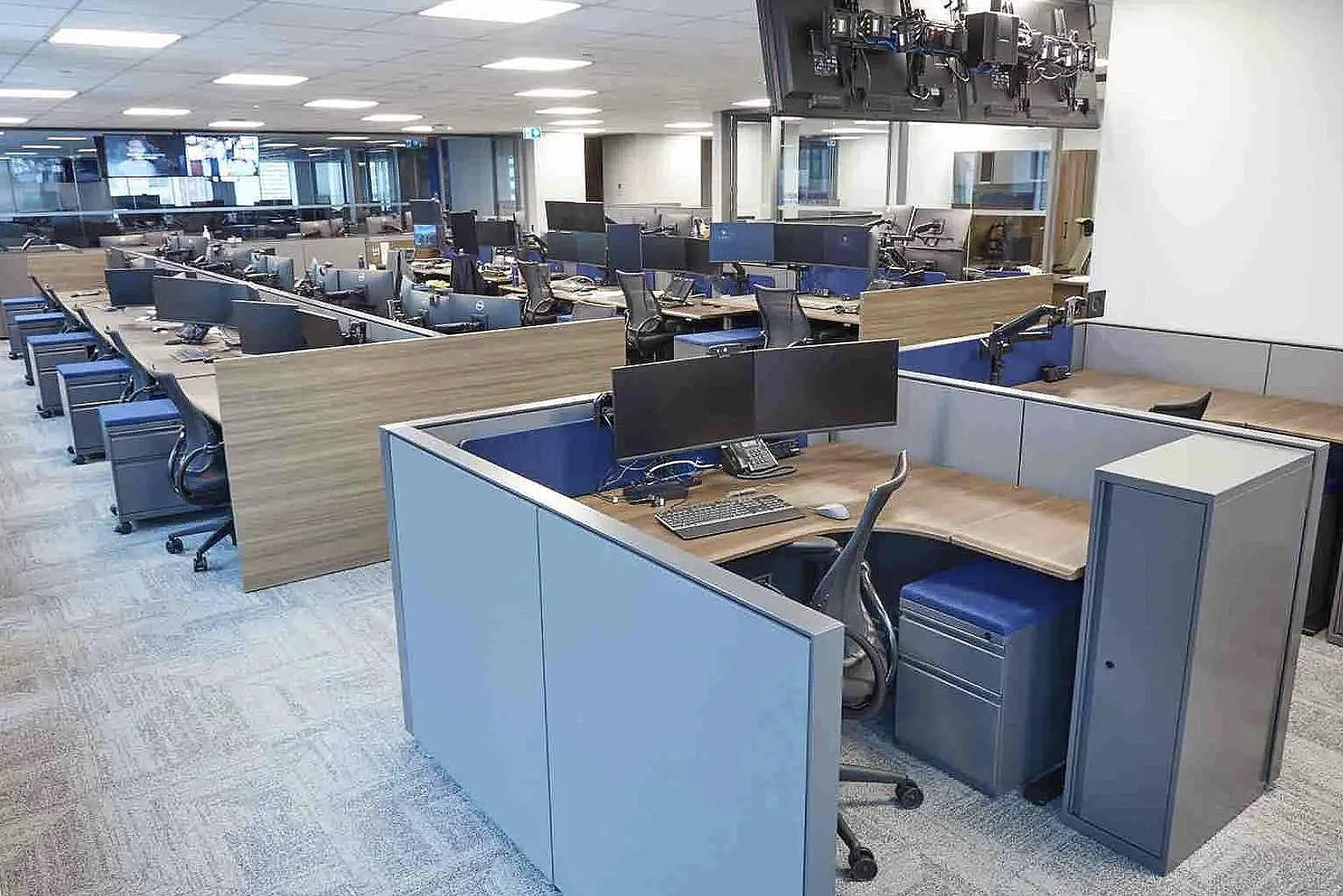

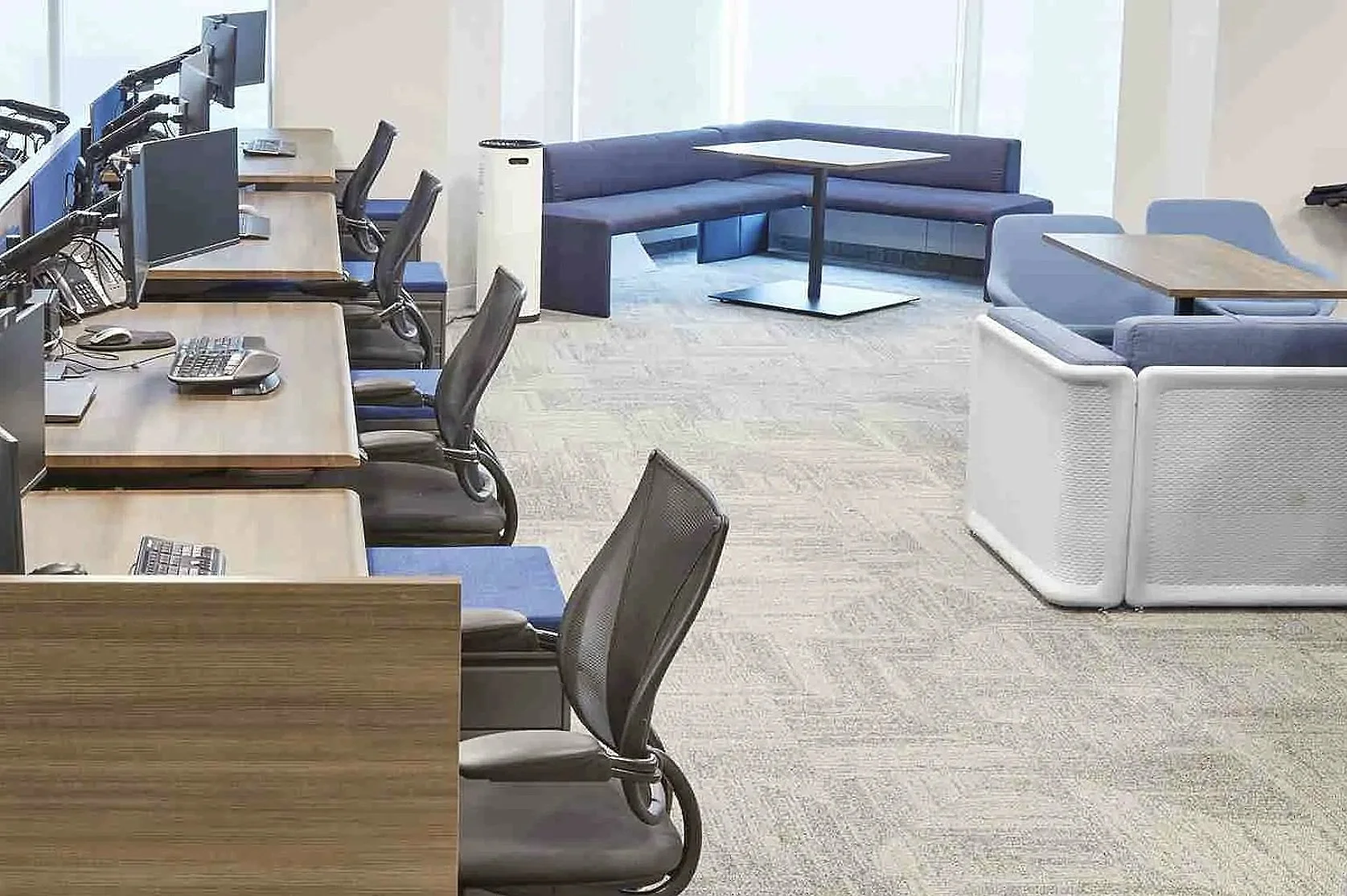

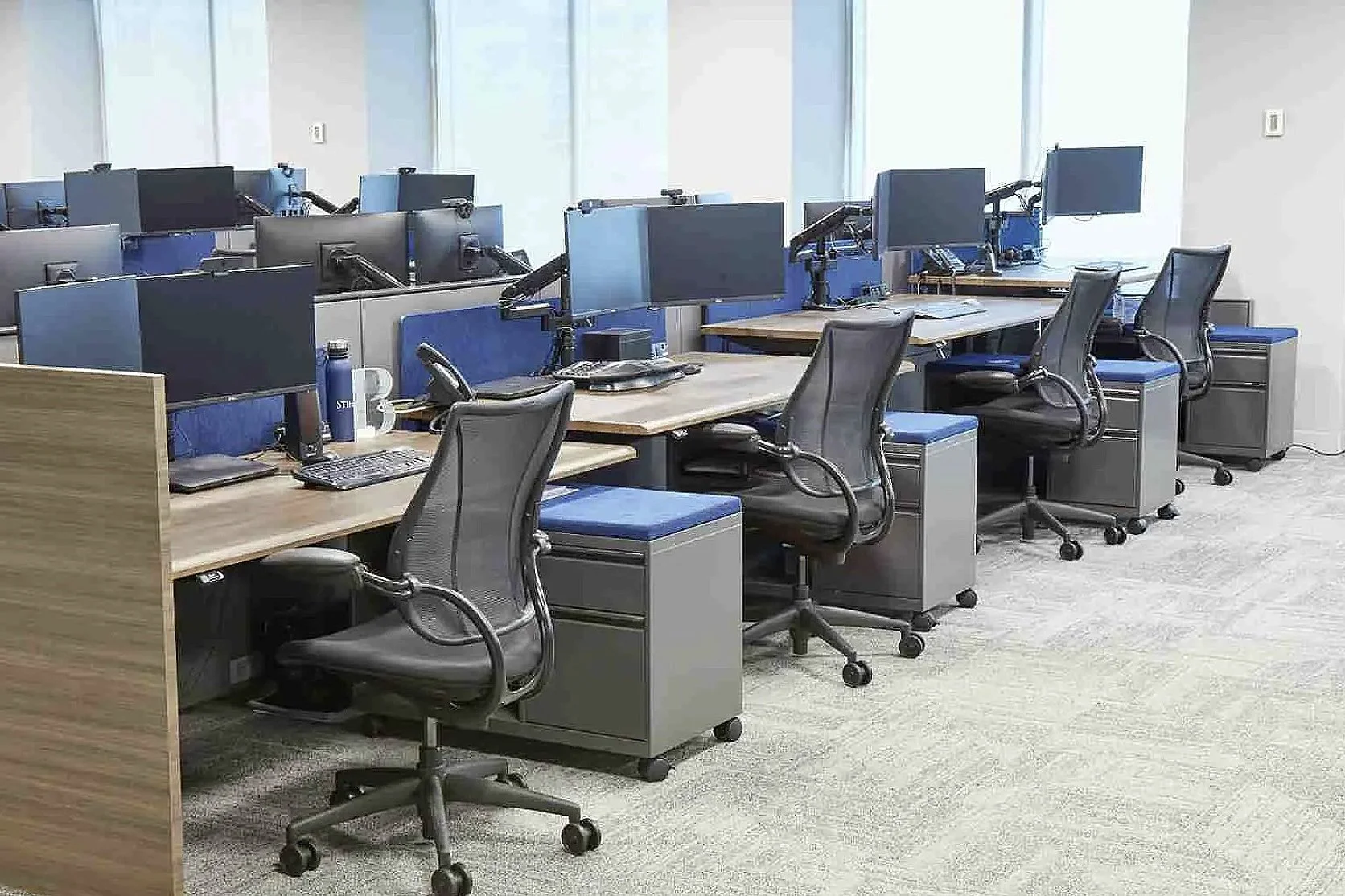

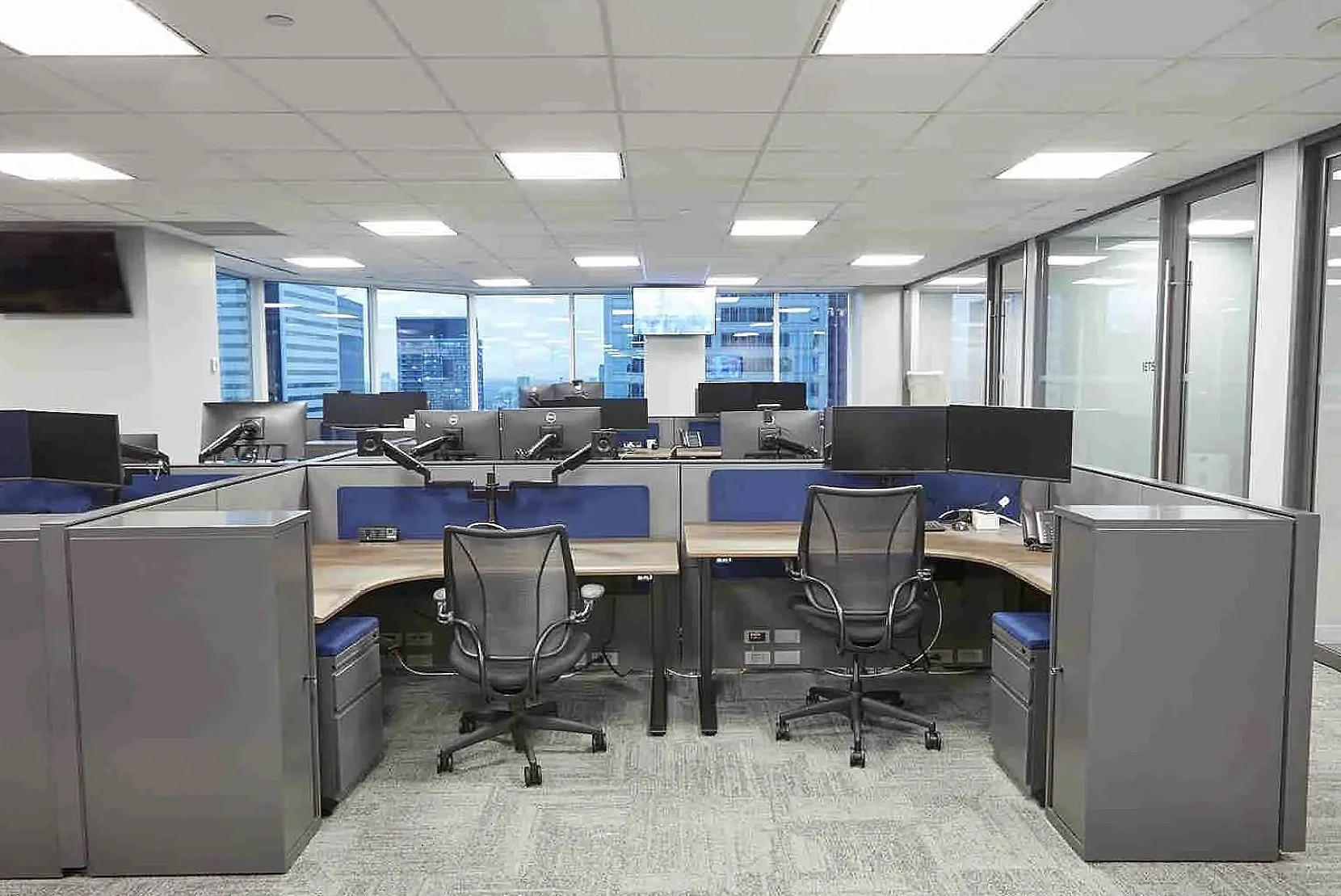

My scope of work involved designing workstation details for 135 workstations. Initially, this project began as a bid and required a mockup of two typical workstations. The images below showcase our successful installation. The drawing set includes an overall layout of the workstation requirements and detailed drawings that helped us win the bid. Each of the five different departments had specific needs. I presented finishes, verified dimension restrictions, designed custom furniture, researched accessories and weight capacities, and created floor plans with legends for both the workstations and building power.

Shop Drawings

  • Bench Workstation

    Type 1 - Renderings & Details

  • Bench Workstation

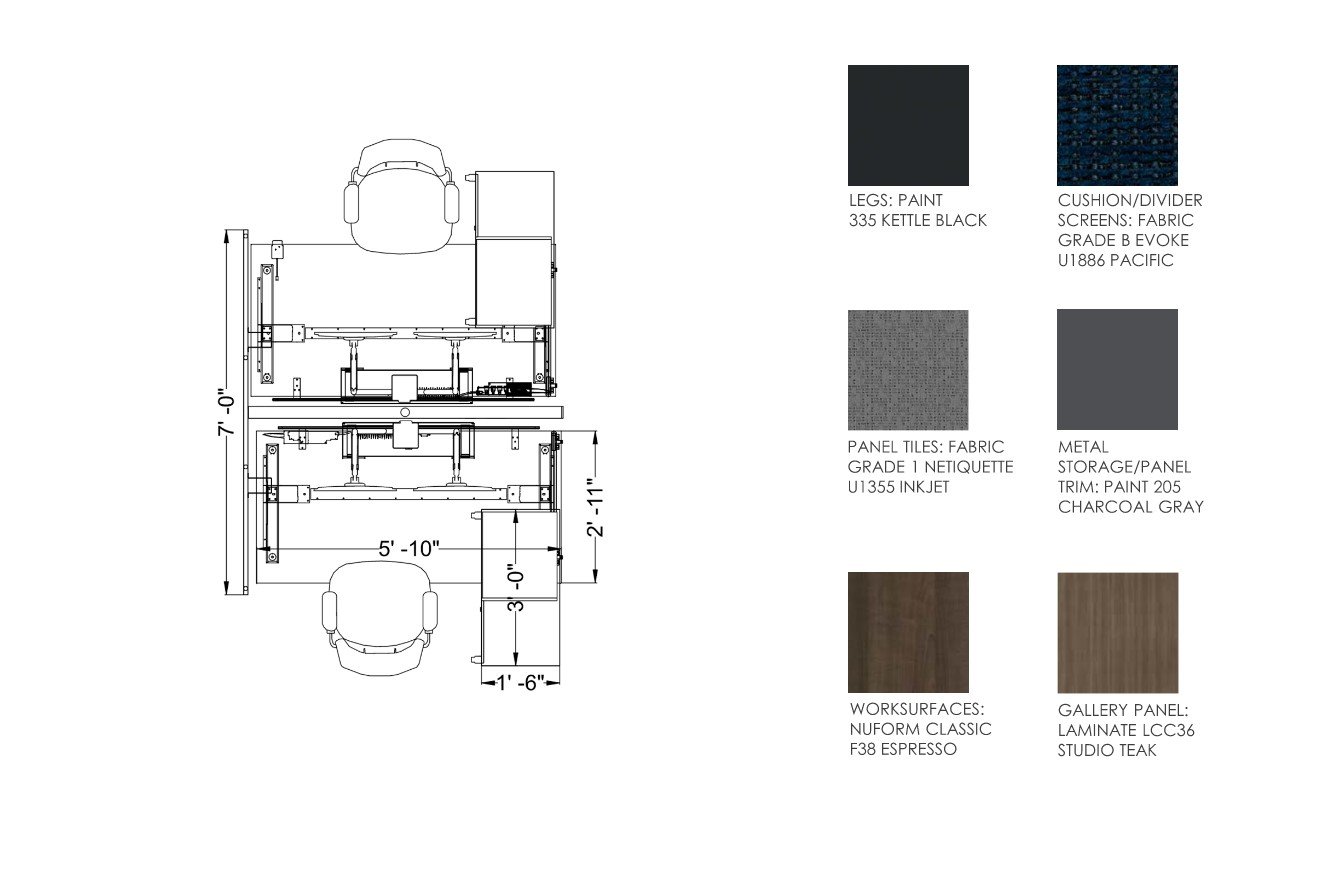

    Type 1 - 2D Plan & Finishes

  • Bench Workstation

    Type 1 - Accessory Details

  • L-Shape Workstation

    Type 2 - Renderings & Details

  • L-Shape Workstation

    Type 2 - 2D Plan & Finishes

  • L-Shape Workstation

    Type 2 - Accessory Details

Drawing Set Sample

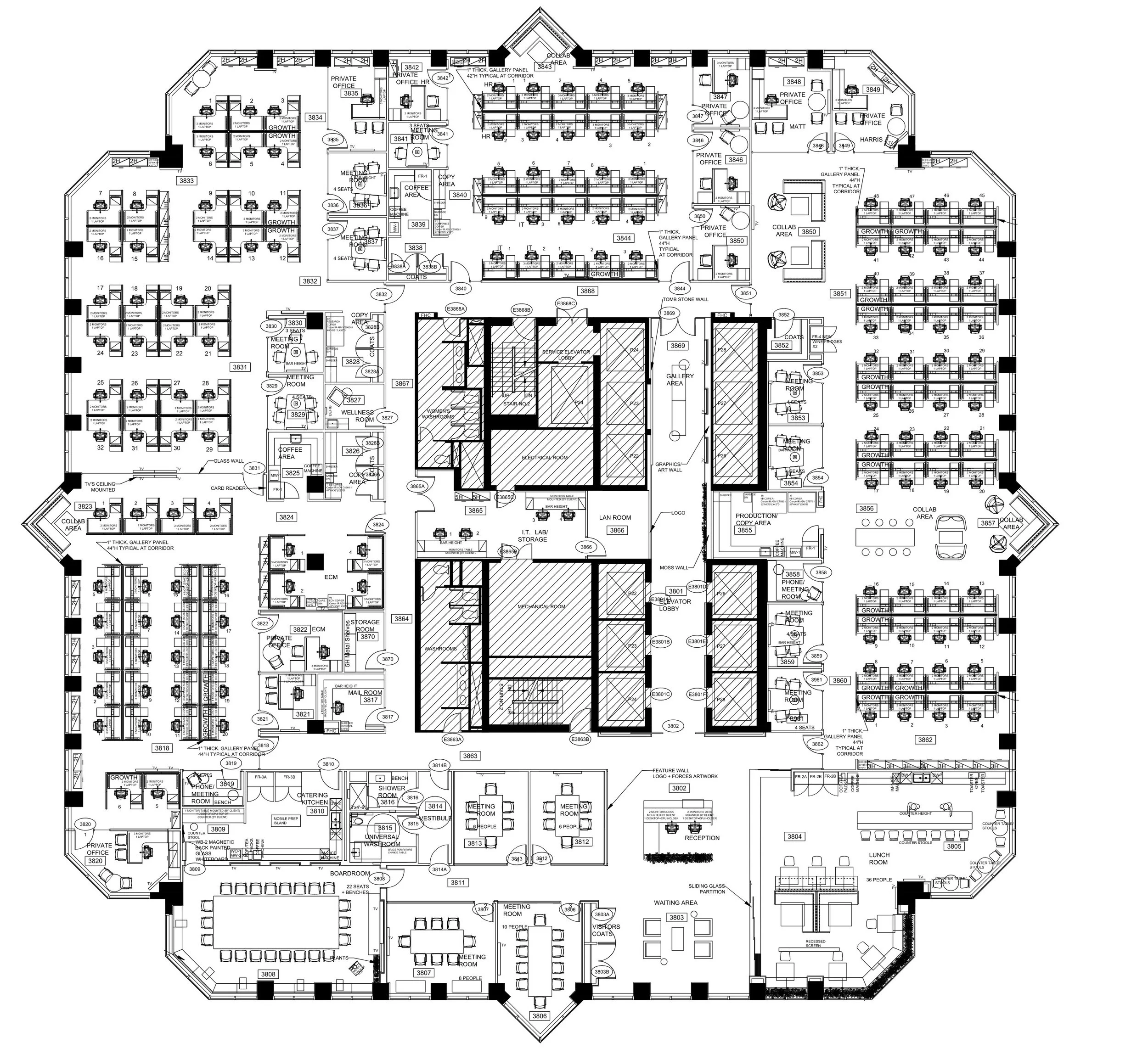

  • Floor Plan

    This floor plan above illustrates the installed furniture layout and includes notes detailing client requests.

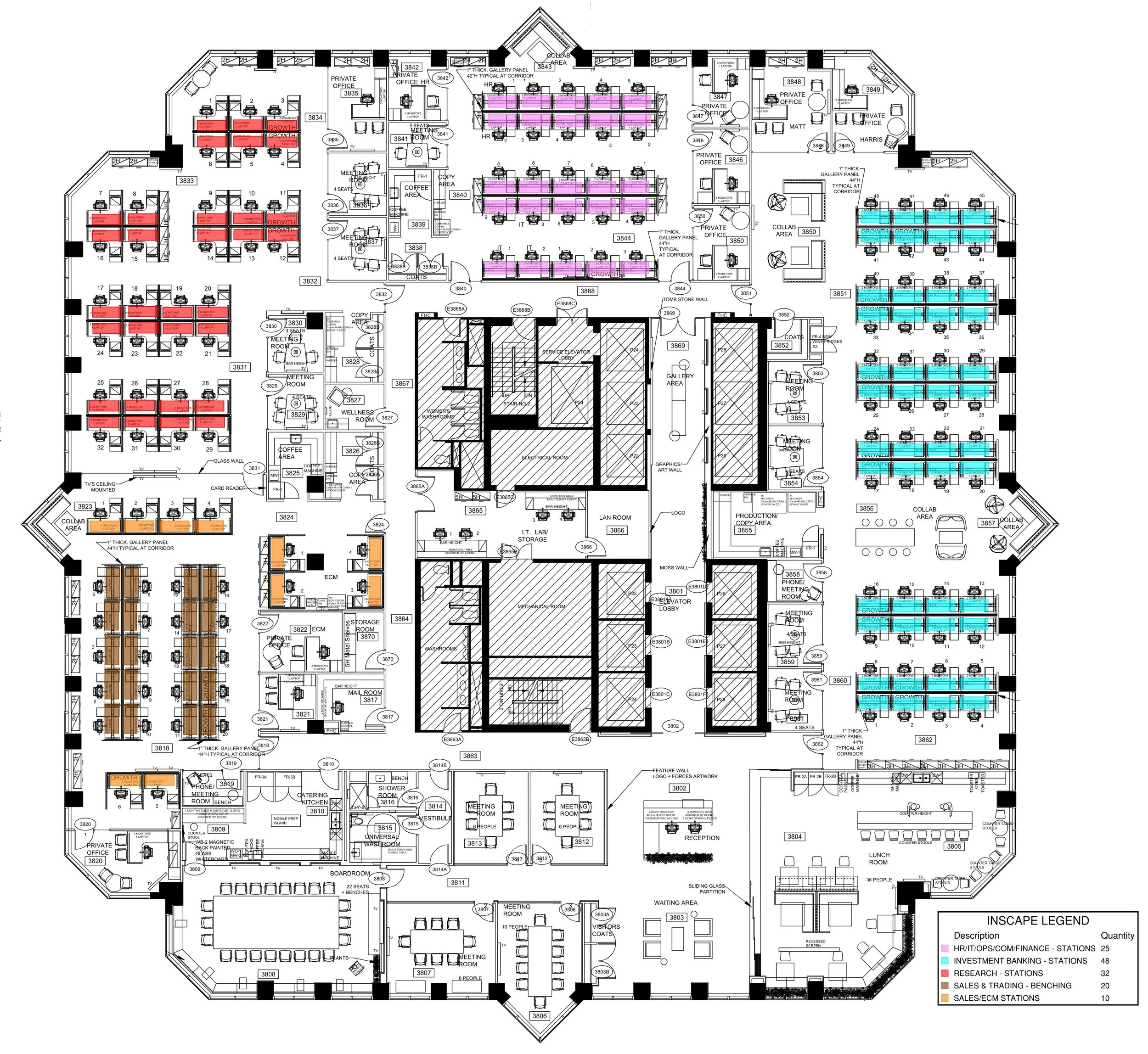

  • Inscape Product

    This floor plan was designed to highlight Inscape product. The furniture is labeled by department and with tags to ensure accurate quantity counts and to enable all parties to cross-reference the floor plan with our product details.

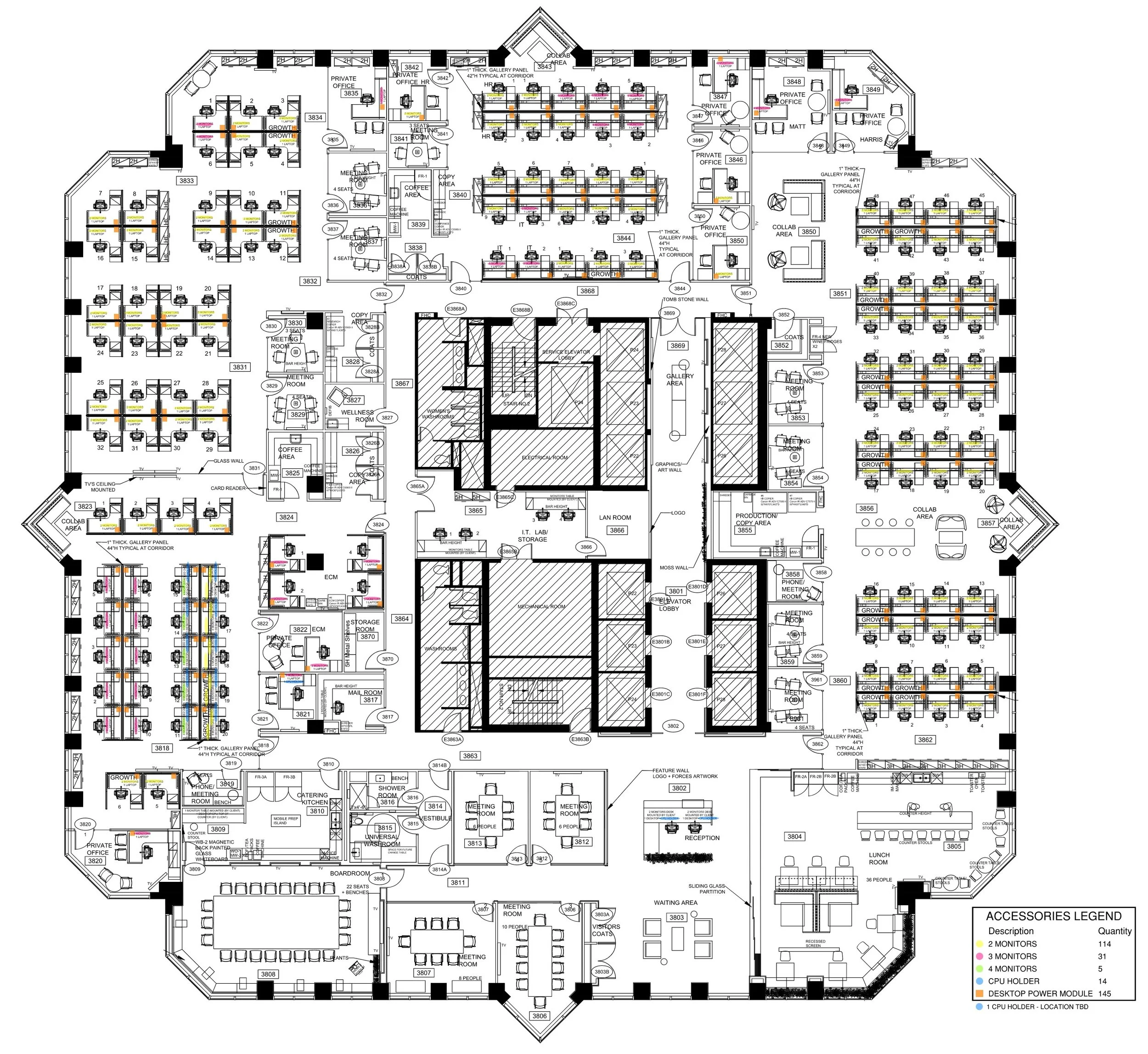

  • Accessory Placement

    An accessory placement floor plan was developed to assist the client in allocating the appropriate monitor arms and CPU holders to each department, ensuring the overall office inventory is fulfilled.

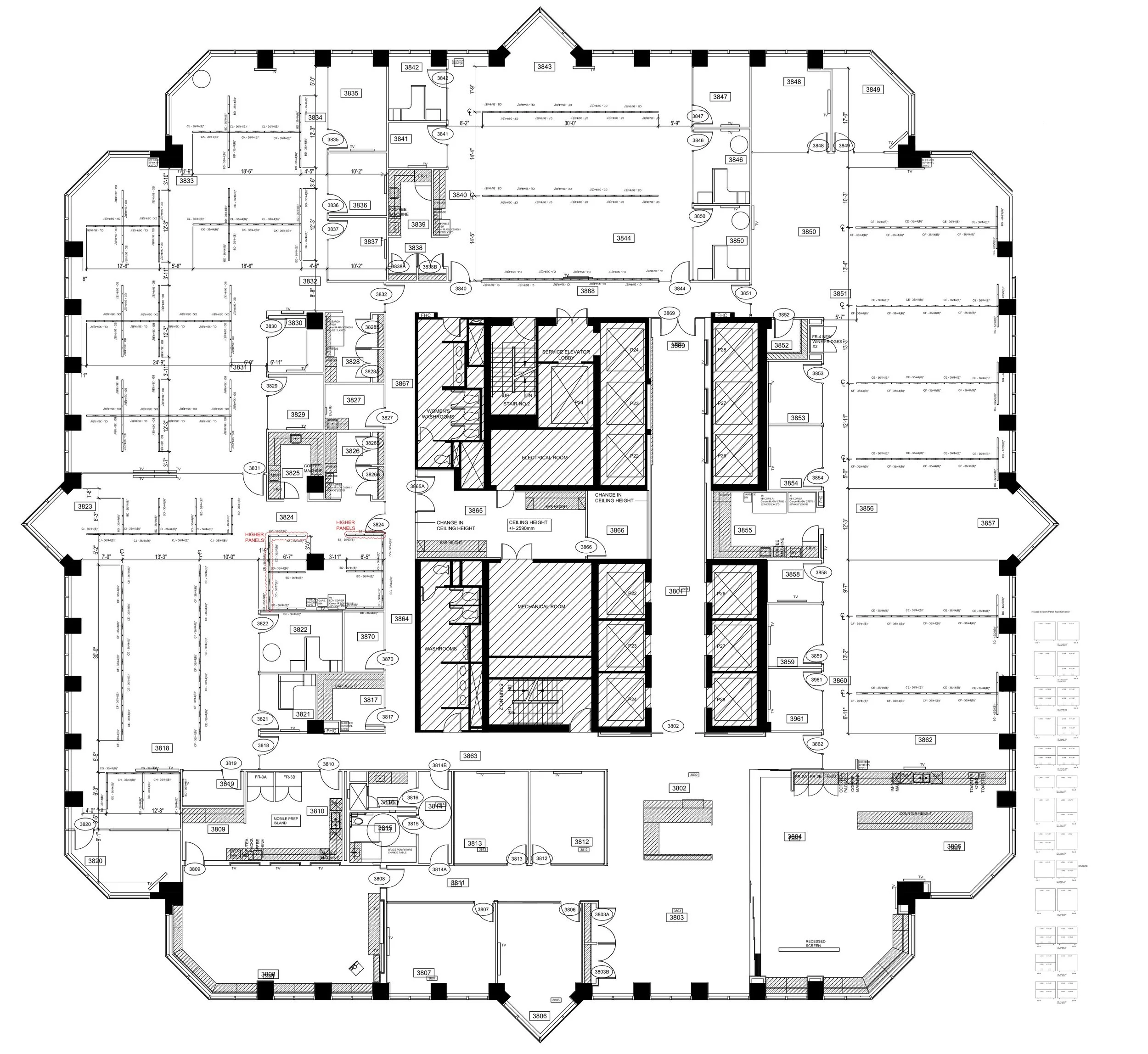

  • Panel Plan

    This floor plan highlights panel configurations, dimensions, and panel sizes to provide installers with a clear visual of each panel's placement.

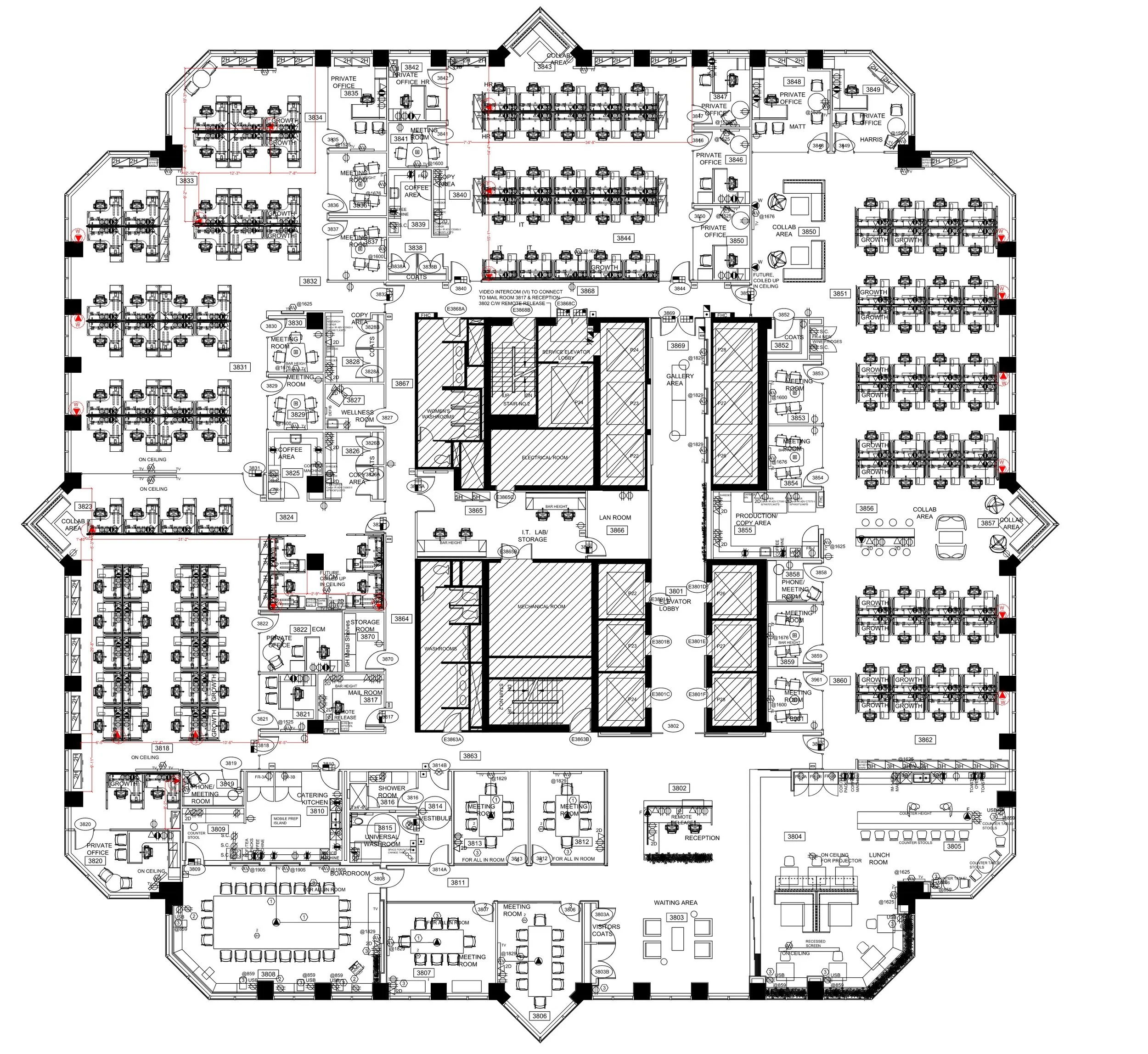

  • Electrical Plan - Building Power

    The electrical plan details building access power locations, which were field-verified and cross-referenced with the engineers’ electrical plans to ensure compatibility. Building power was sourced from either a wall, column, or floor core location to reach the workstation infeed.

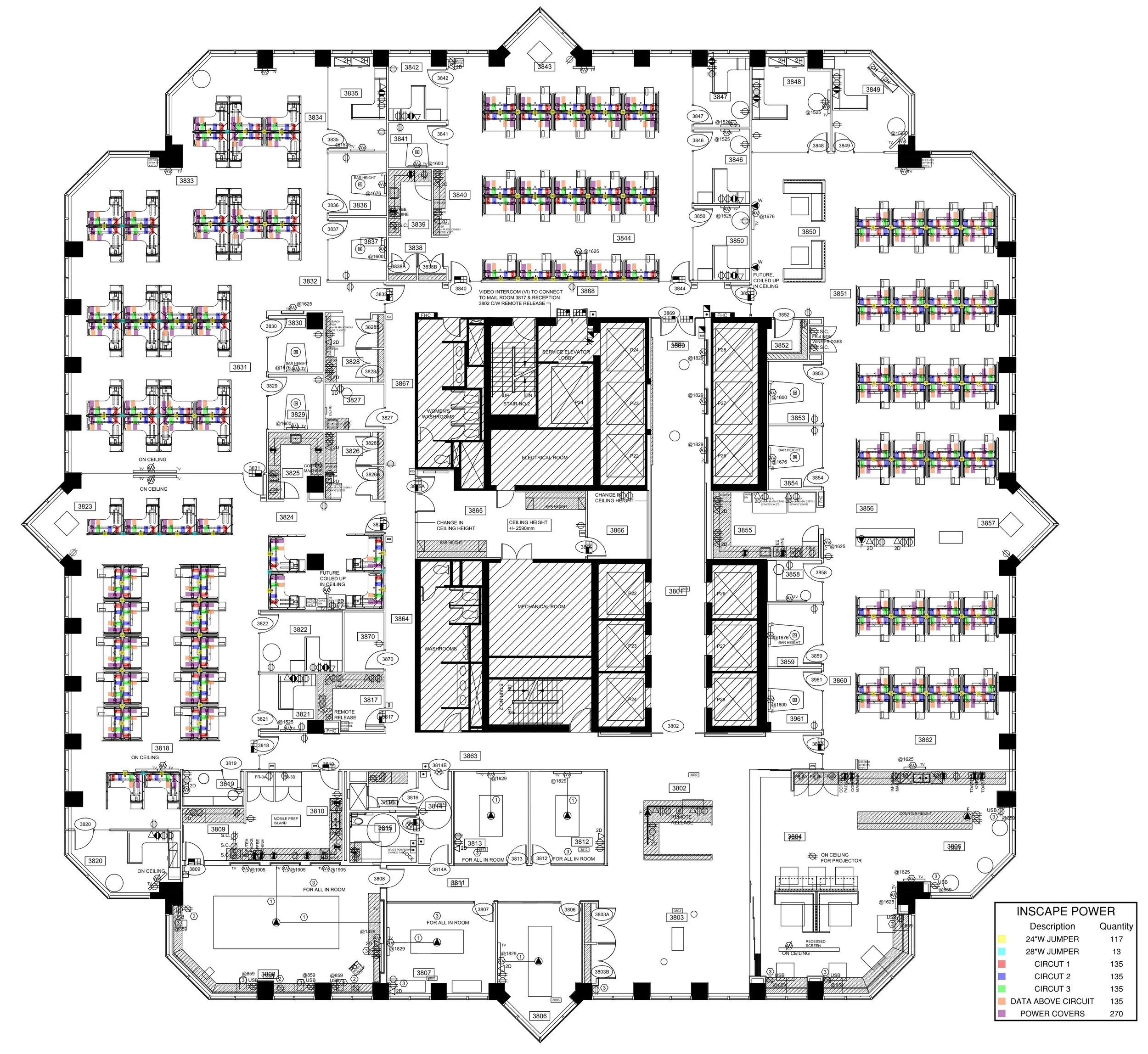

  • Electrical Plan - Workstation Power

    This electrical plan focuses on Inscape’s outlets. Engineering drawings were cross-referenced to determine the allowed number of duplex outlets per station cluster. By color-coding the drawing using Bluebeam, we were able to verify the required quantities and provide a clear visual guide for installers.
